Digital Meter Connections

Digital meter connections which are British designed and made digital volt and ammeter units using the latest design and production techniques.

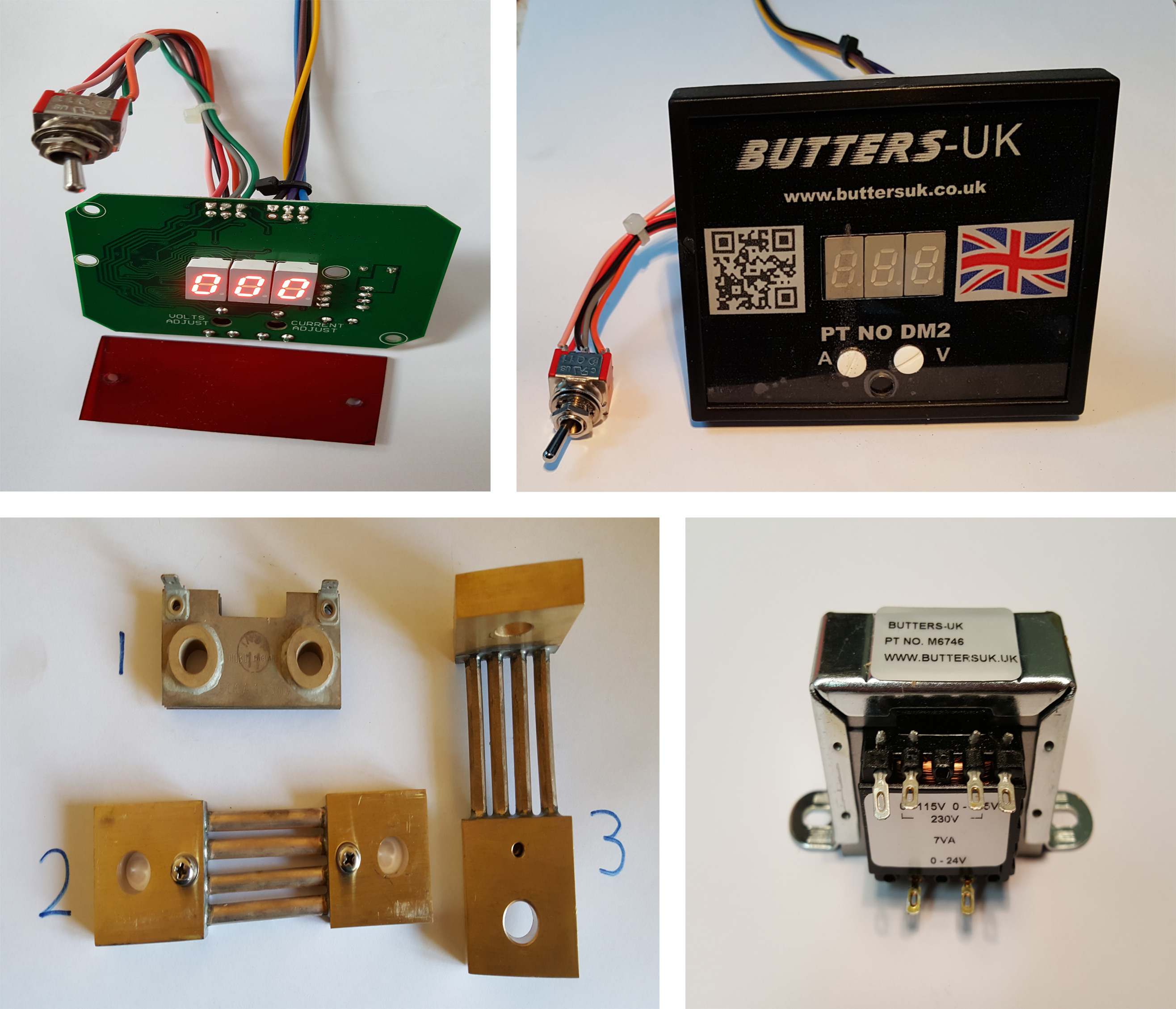

CONNECTION DETAILS, BLUE 0 VOLTS, BROWN 24VAC, PURPLE TO NEG

BLACK TO SHUNT RECTIFIER SIDE, YELLOW TO SHUNT WELD CABLE SIDE

THE TWO CAPS NEXT TO THE A & V ARE REMOVED TO ADJUST THE METER

ADJUSTMENT POTS ARE 1 TURN ONLY

TRANSFORMER 230/115VAC INPUT— 0/24VAC OUTPUT
