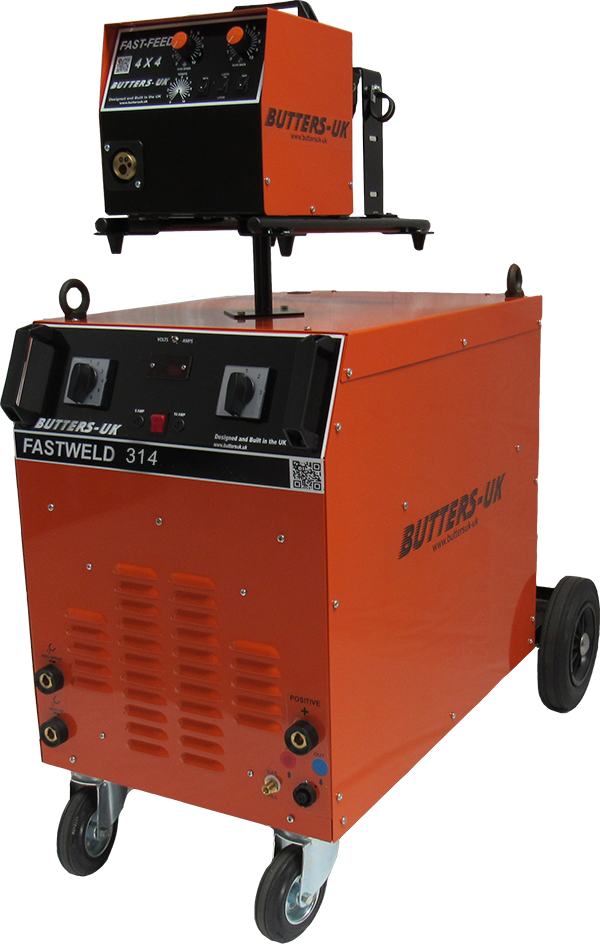

Fast Weld 314 Spares

Call for Price

300 amps 230 volts

The Fast Weld 314 machine must stand out as being one of the top quality machine of this type. Good size wheels for the manoeuvrability, with laser cut panels for excellent fitting of components in these 40% duty cycle machines.

The parts used in these machines are of the highest quality. A large cooling fan is used for prolonged performance runs. Dual overload control for greater protection. The front panel has an LED digital volt and ammeter. Fast feed unit as the name implies will run at 22mpm. We have fitted the latest 4 roll system, capable of taking 0.6mm up to 1.2mm wires. Electrically safe and finger proof by means of having the gears enclosed. The feed units on all our machines are interchangeable. They can also be fitted to other makes of machine. The industrial drive roll has two wire sizes on it and only requires being reversed to change sizes. Three metre interconnections are sheathed for protection. Optional longer lengths.

Requires 25a supply 230vac 1 phase 300a @40% duty cycle. Viewing our drive system against our competitors you will see it’s superior quality and robustness.

Life expectancy over 20 years.

Description

The Fast Weld 314 machine must stand out as being one of the top quality machine of this type. Good size wheels for the manoeuvrability, with laser cut panels for excellent fitting of components in these 40% duty cycle machines.

The parts used in these machines are of the highest quality. A large cooling fan is used for prolonged performance runs. Dual overload control for greater protection. The front panel has an LED digital volt and ammeter. Fast feed unit as the name implies will run at 22mpm. We have fitted the latest 4 roll system, capable of taking 0.6mm up to 1.2mm wires. Electrically safe and finger proof by means of having the gears enclosed. The feed units on all our machines are interchangeable. They can also be fitted to other makes of machine. The industrial drive roll has two wire sizes on it and only requires being reversed to change sizes. Three metre interconnections are sheathed for protection. Optional longer lengths.

Requires 25a supply 230vac 1 phase 300a @40% duty cycle. Viewing our drive system against our competitors you will see it’s superior quality and robustness. Life expectancy over 20 years.
