Fast Weld 538 Spares

Call for Price

500 amps 400 volts

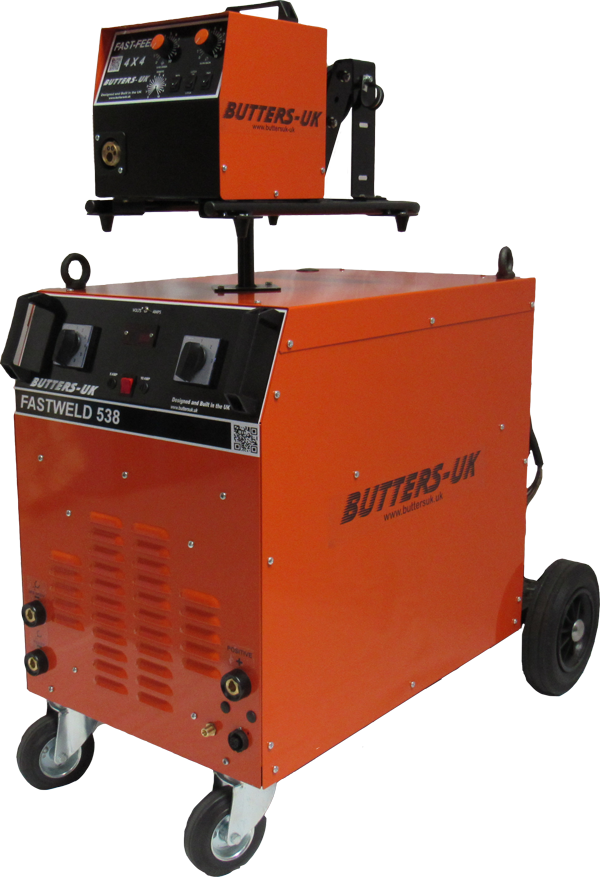

This 500a Fast Weld 538 machine is the top of our professional range. Good size wheels 250mm diameter for manoeuvrability, with lifting eyes and laser cut panels for excellent fitting of components in these machines. The quality within the machine will allow it to run at 100% on 1.2mm wire. Ideal for use with companies on three shift rotas.

The parts used in these machines are of the highest quality. Two large cooling fan are used for prolonged performance runs. Dual overload control for greater protection. The front panel has an LED digital volt and ammeter. The Fastfeed unit will run at 26mpm. This unit has the advantage of being able to fit the high speed drive in it to allow it to feed up to 30mpm. Possibly the fastest feed unit available. A British made Parvalux motor is fitted to give the high maximum speed of 26 mpm and long life due to the bearings in the motor and drive system. The Parvalux motor fitted in this feed unit has changeable brushes for replacement as and when they wear out.

We have fitted the latest 4 roll system, capable of taking 0.8mm up to 2.4mm wires. Electrically safe and finger proof by means of having the gears enclosed. The feed units on all our machines are interchangeable. They can also be fitted to other makes of machine having either 110-42-24 output. The industrial drive roll has two wire sizes on it and only requires being reversed to change sizes. Three metre interconnections are sheathed for protection. Viewing our drive system against our competitors you will see it’s superior quality and robustness.

Life expectancy over 20 years.
