Fast Weld 336 Spares

Call for Price

300 amps 400 volts

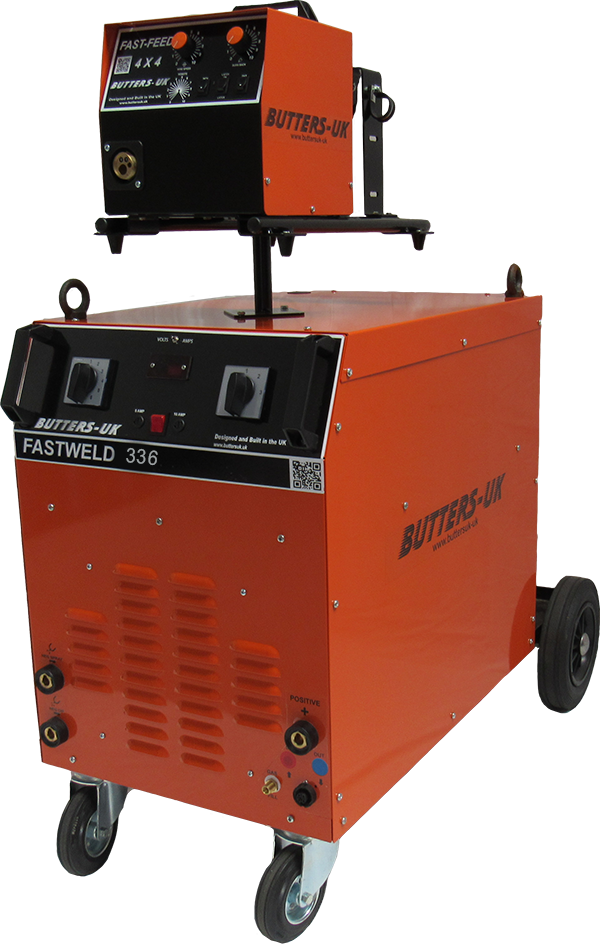

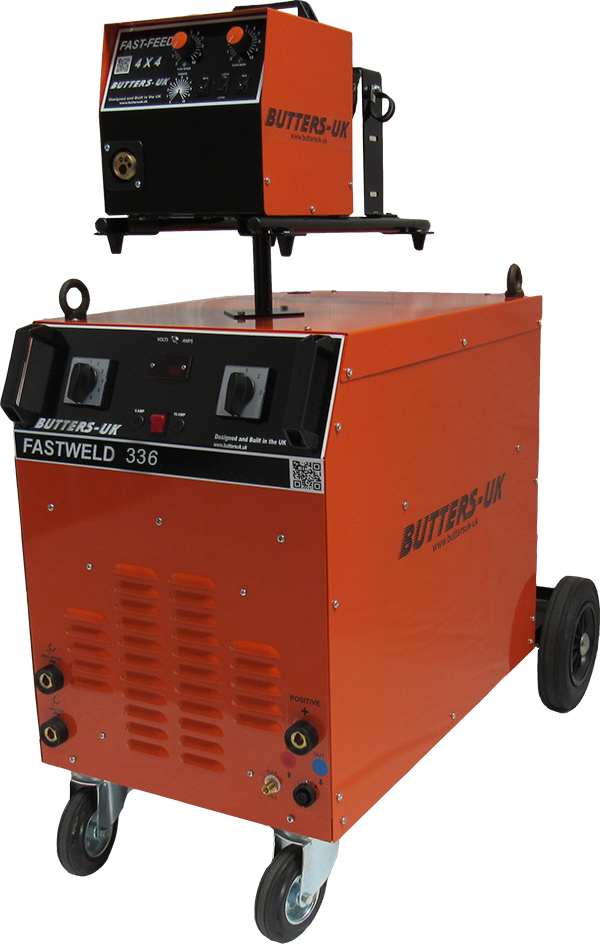

This Fast Weld 336 machine must stand out as being one of the top quality machines of this type. Good size wheels for the manoeuvrability, with laser cut panels for excellent fitting of components in these 60% duty cycle machines.

The parts used in these machines are of the highest quality. A large cooling fan is used for prolonged performance runs. Dual overload control for greater protection. The front panel has an LED digital volt and ammeter. Fast feed unit as the name implies will run at 26mpm the fastest of it’s size. A British made Parvalux motor is fitted to give the high maximum speed of 26mpm and long life due to the bearings in the motor and drive system. The Parvalux motor fitted in this feed unit has changeable brushes for replacement as and when they wear out. We have fitted the latest 4 roll system, capable of taking 0.6mm up to 1.6mm wires. Electrically safe and finger proof by means of having the gears enclosed. The feed units on all our machines are interchangeable. They can also be fitted to other makes of machine. The industrial drive roll has two wire sizes on it and only requires being reversed to change sizes. Three metre interconnections are sheathed for protection. Optional longer lengths.

Requires 16a per phase supply 400vac 3 phase, 300a@60% duty cycle. Viewing our drive system against our competitors you will see it’s superior quality and robustness. Life expectancy over 20 years.

Description

This Fast Weld 336 machine must stand out as being one of the top quality machines of this type. Good size wheels for the manoeuvrability, with laser cut panels for excellent fitting of components in these 60% duty cycle machines.

The parts used in these machines are of the highest quality. A large cooling fan is used for prolonged performance runs. Dual overload control for greater protection. The front panel has an LED digital volt and ammeter. Fast feed unit as the name implies will run at 26mpm the fastest of it’s size. A British made Parvalux motor is fitted to give the high maximum speed of 26mpm and long life due to the bearings in the motor and drive system. The Parvalux motor fitted in this feed unit has changeable brushes for replacement as and when they wear out. We have fitted the latest 4 roll system, capable of taking 0.6mm up to 1.6mm wires. Electrically safe and finger proof by means of having the gears enclosed. The feed units on all our machines are interchangeable. They can also be fitted to other makes of machine. The industrial drive roll has two wire sizes on it and only requires being reversed to change sizes. Three metre interconnections are sheathed for protection. Optional longer lengths.

Requires 16a per phase supply 400vac 3 phase, 300a@60% duty cycle. Viewing our drive system against our competitors you will see it’s superior quality and robustness. Life expectancy over 20 years.
